SRP Steel Wall Strapping Solutions

Steel Rollformed Products is a leading local supplier of rollformed steel wall & ceiling systems predominantly for the NZ construction industry, as well as Seismic bracing and Access solutions.

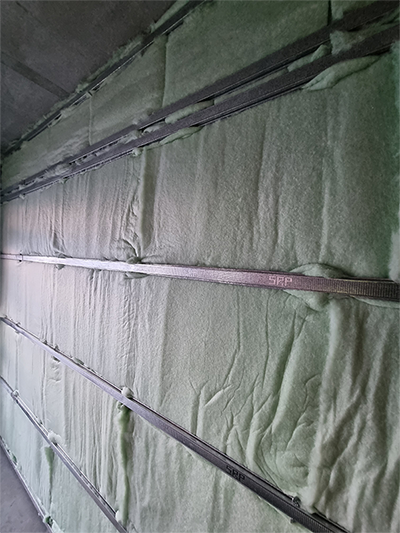

In construction one of the most inconspicuous interior systems, is the Wall Strapping Systems – which are specifically designed for strapping and lining of concrete/ pre-cast, masonry, block, or brick –often the internal side of building external walls, or alternatively exposed concrete internal walls/ pillars.

Unfortunately, due to the many building-site challenges, conditions, and construction/ build tolerances these types of substrates are usually not flat/ true or accurate as required, in order to achieve a reasonable or level 5 surface finish. Also, often there are other building products/ components which need to be included within the wall thickness, such as insulation and electrical or plumbing cables, conduits, and service pipelines of varying dimensions – all of which need to be allowed for.

There following is our range of SRP Wall Strapping System Options (Construction methods):

  • SRP BATTEN & ADJUSTABLE CLIP SYSTEM
    SUITABILITY: Electrical conduits, SML diameter Service pipelines, insulation
    Cavity Range = 22mm > 67mm (Batten Options: 16, 22, 28, 35mm + 4-Stage Adj. Clips)
  • SRP BATTEN & ZERO BRACKET W/ RIVNUT + THREADED ROD SYSTEM
    SUITABILITY: Insulated Panel Systems/ External Concrete (fine thread adjustment)
    Cavity Range = 20mm > 141mm (w/ 32mm Wedge Anchor embedment 65 – 150mm bolts)
  • SRP STEEL STUD & TRACK WALL STRAPPING SYSTEM
    SUITABILITY: LGE diameter Service pipelines: Plumbing/ Electrical Ducting
    Cavity Range = 51mm > 150mm (steel studs to braced back to wall @ mid height)

Architectural reference information includes Wall Strapping Clip & Batten Charts (pdf) with specific dimensions, for the various systems as mentioned above – which provide quick-reference, CAD details (downloadable via website), and project example images.
Also, we have profile samples + sample packs available – useful for on-site mock-ups, and assemblies.

If you have any queries please e-mail glenn@srpltd.co.nz or visit www.srpltd.co.nz for further information.

Resources

PDF Downloads Available here.

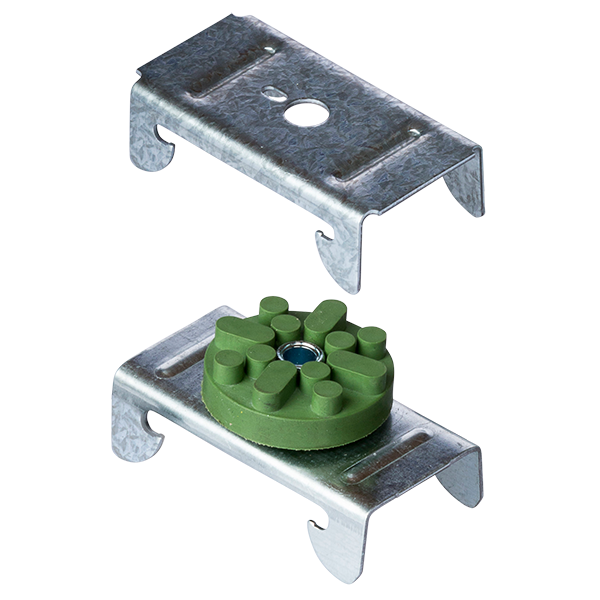

Zero Clip & Acoustic Zero Clip

Combines with 16mm and 28mm batten to provide a wall strapping solution. Space ceiling at 1200mm centres and walls at 900mm centres.

The acoustic zero clip comes complete with a threaded rubber washer to isolate the wall from the framing.

Codes:

SRPZCE16028 Zero Clip
SRPZCAE1628 Acoustic Zero Clip
Zero Clip & Acoustic Zero Clip

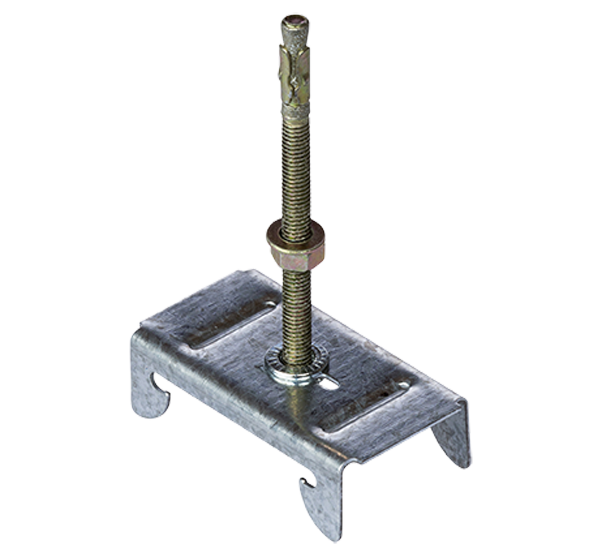

Zero Clip with TruBolt

Used for strapping concrete and block walls. Threaded hole and masonry anchor included (65mm – 180mm).

Combines with 16mm and 28mm batten and adjustable length allows insulation to be installed.

Codes:

SRPZCRE0065 Zero Clip with 65mm Bolt.
SRPZCRE0100 Zero Clip with 100mm Bolt.
SRPZCRE0120 Zero Clip with 120mm Bolt.
SRPZCRE0150 Zero Clip with 150mm Bolt.
SRPZCRE0180 Zero Clip with 180mm Bolt.
Zero Clip with TruBolt

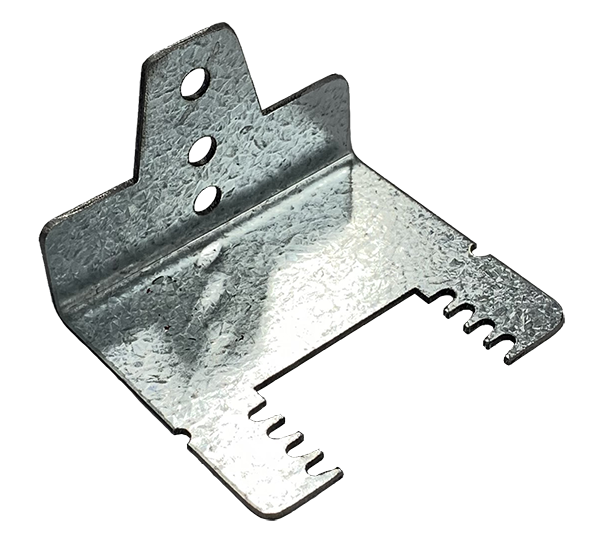

X-40 Wall Strapping Clips

X-40 Wall Strapping Clips

X-50 Wall Strapping Clips

X-50 Wall Strapping Clips

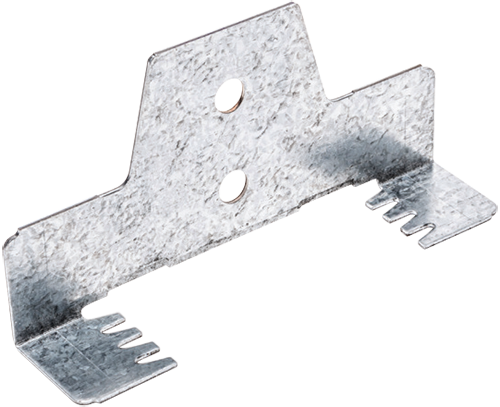

ADJUSTABLE WALL FIX CLIP

Used for strapping concrete and block walls. Accommodates 22mm & 35mm Battens.

Code: SRPACE22035
ADJUSTABLE WALL FIX CLIP

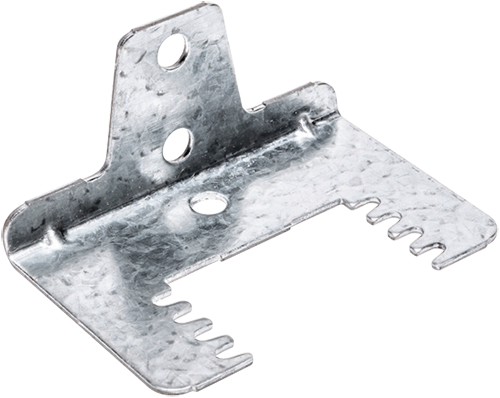

ADJUSTABLE WALL FIX CLIP LONG SERIES

Used for strapping concrete and block walls. Accommodates 16mm or 28mm Battens.

Code: SRPACLE1628
ADJUSTABLE WALL FIX CLIP LONG SERIES

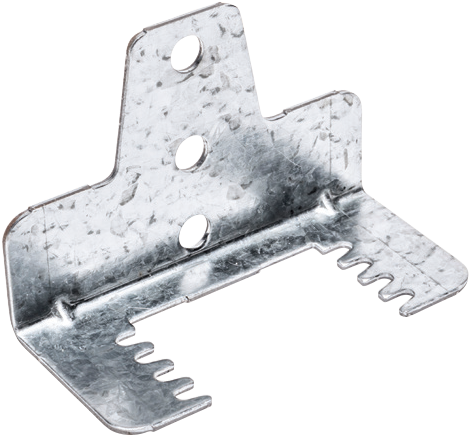

ADJUSTABLE WALL FIX CLIP SHORT SERIES

Used for strapping concrete and block walls. Accommodates 16mm or 28mm Battens.

Code: SRPACSE1628
ADJUSTABLE WALL FIX CLIP SHORT SERIES
